This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled, you still can use this air conditioner. Low noise, energy-saving, environmental protection is the best choice for you. It will help you save thousand dollars on gas every year.
The air-conditioning and heating systems are separate, and the heating system is independently connected to the original water tank in the car.
Pay attention:
1. PLEASE DON’T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn’t take responsibility for you if you damage the compressor.
2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.
Generator (battery) request:
12V compressor require generator ampere over 100a
24V compressor require generator ampere over 70A.
About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

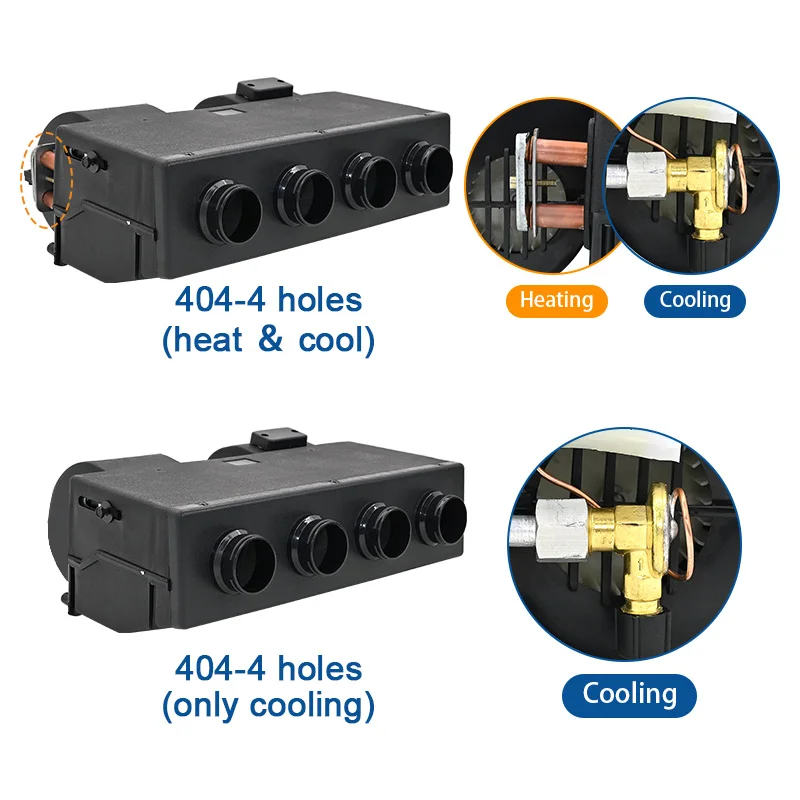

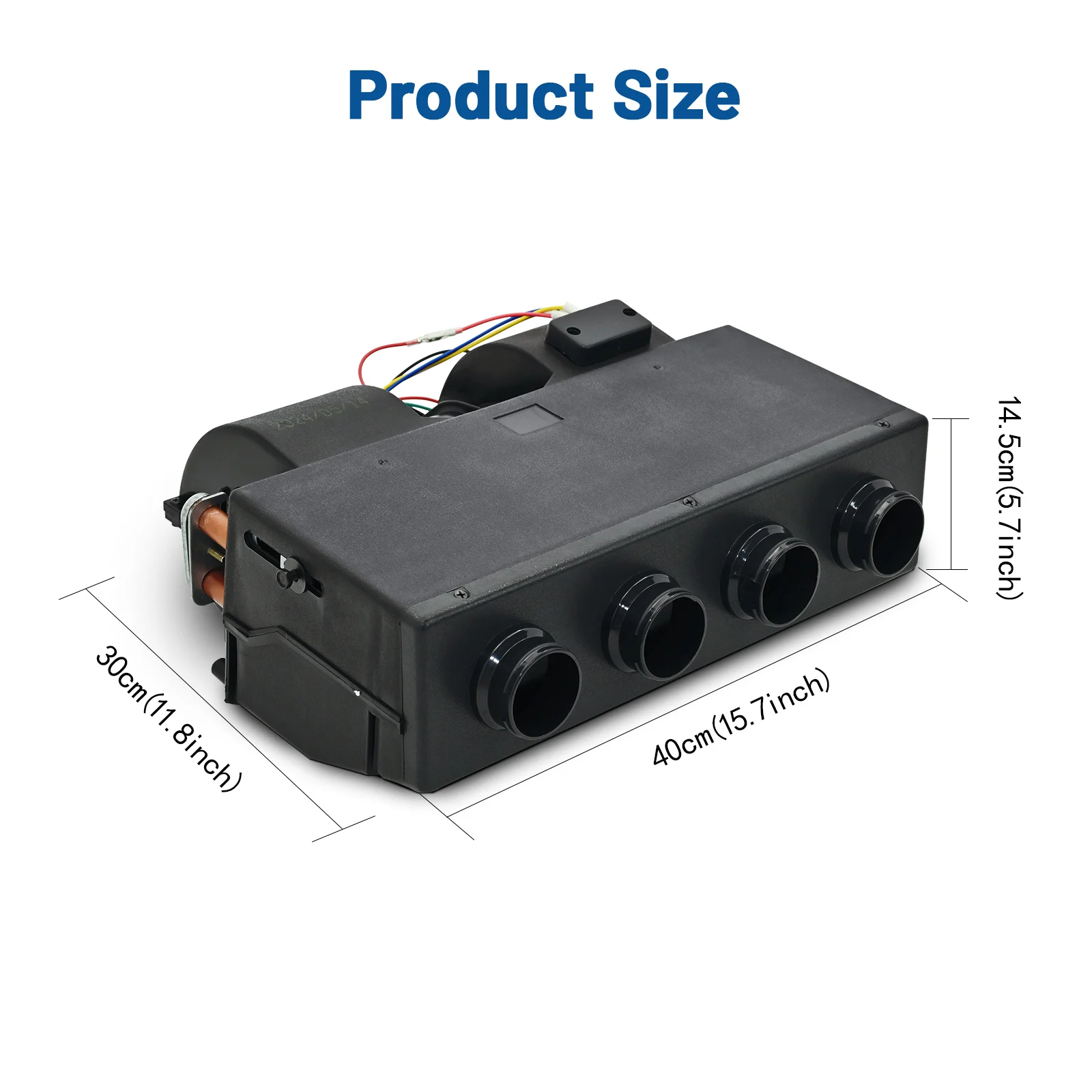

Evaporator:
Cooling capacity: About 13700Btu/h
Evaporator coil: 32 passe 4way toda a bobina do alumÃnio
Evaporator blower motor power: 80-100W
Evaporator air type：Heating and Cooling
Switch: Temperature and 3-speed blower switch
Compressor Data:
Compressor type: semi-hermetic horizontal scroll compressor
Material: aluminium alloy
VoltageDC-12V
Displacement20cc/r
OilRL68H(POE)) 120ml
Refrigerant (Gas)R134a
Operating voltage9.5V-15V
Variable frequency voltage4V-9V
Rated power:650W~800W
Refrigeration capacity>2200W
Speed range1000-2500rpm
Overcurrent protection80A
COP3.3
Max Noise<70dB(A)
Suction pipe inner size∅18.3mm
Discharge pipe inner size∅15.5mm
Led blinking：
Blinking 1 times, pause 1 second: Standby mode.
Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.
Fast blinking 3 times, pause 1 second: Locked rotor protection.
Fast blinking 4 times, pause 1 second: Undervoltage protection.
Fast blinking 6 times, pause 1 second: Electric fan fault.
Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.
Fast blinking 8 times, pause 1 second: Compressor over heated protection.
Fast blinking 9 times, pause 1 second: Pressure switch protection.

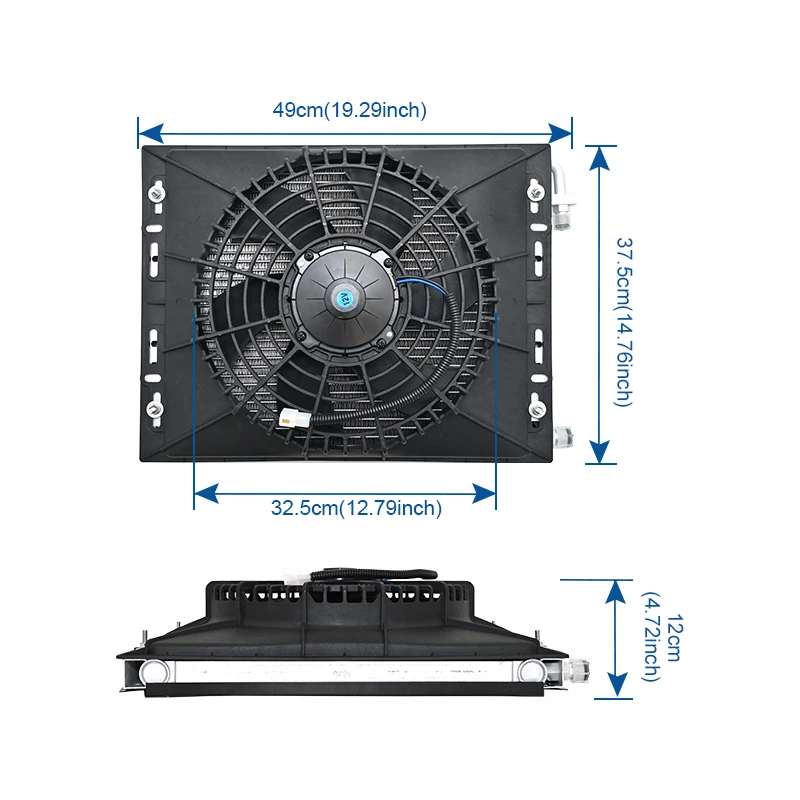

Condenser Outside unit:
Power : 120w
Outside Unit Dimension (Inch): 19.29x 14.76 x 4.72 inch
